system devices

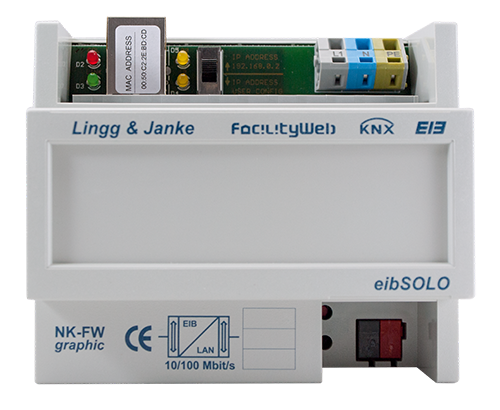

network coupler

  • provides all FacilityWeb functions like TCP/IP access, FTP access for KNX bus devices
  • graphical presentation of up to 8 meters is a bar diagram
    • bar diagram for day/ week/ month and year
    • comparison / summary of 2 days / weeks / months / years
    • display of consumption data / feed-in and cost / earnings, today / yesterday, this week / last week, this year / last year
  • meters need to be set on group 1 and channel 1 to 8
  • records up to 8 meter readings hourly for 10 years
  • interface for the FacilityWeb devices
  • also available with integrated power supply with 80 mA (small KNX arrangement, max. 5 devices)
  • REG devices with 6 rail units

Designation
FacilityWeb network coupler - quick

Type
NK-FW-graphic-quick

RU
4

Order-no.
Q87350

Designation
FacilityWeb network coupler - quick with integrated power supply unit 80 mA

Type
NT80NK-FW-graphic-quick

RU
4

Order-no.
Q87351

Power supply unit 640, 320, 160 mA

  • KNX power supply unit with choke
  • bus voltage output via bus connectors
  • separate voltage output - decoupled

Designation
KNX power supply 640 mA

Type
NT640-62

RU
6

Order-no.
88405

Designation
KNX power supply 320 mA

Type
NT320-42

RU
4

Order-no.
88406

Designation
KNX power supply 160 mA

Type
NT160-42

RU
4

Order-no.
88407

temperature sensors

  • complete FacilityWeb functionality (via NK-FW)
  • including integrated KNX bus coupler
  • integrated data logger for temperature thresholds, status
  • temperature range -55 … +125°C
  • TCP/IP-protocol, dedicated homepage (via NK-FW)
  • immersion sleeve and mounting accessories on request

Designation
pipe mounting sensor

Type
ANF99-FW

Order-no.
87130

Designation
KNX duct sensor

Type
KTF99-135-FW 135 mm

Order-no.
87101

Designation
KNX duct sensor

Type
KTF99-240-FW 240 mm

Order-no.
87102

Designation
KNX duct sensor

Type
KTF99-392-FW 392 mm

Order-no.
87103

Designation
cable sensor

Type
LTF02-1m-FW

Order-no.
87104

Designation
cable sensor

Type
LTF02-3m-FW

Order-no.
87105

Designation
damp environment sensor

Type
FRF99-FW

Order-no.
87120

Designation
indoor sensor

Type
RTF99-FW

Order-no.
87140

Wind sensor

  • including external KNX quick evaluation unit

Designation
quick wind sensor

Type
coming soon

Order-no.
Q78902
